Finding the best and most economical tool to
order is easy,
just click on one of these links.
Diagram 1: Selecting the proper R5/FCX3 (engine
Diagram 2: Selecting the proper R5/SRS (airbag tool)

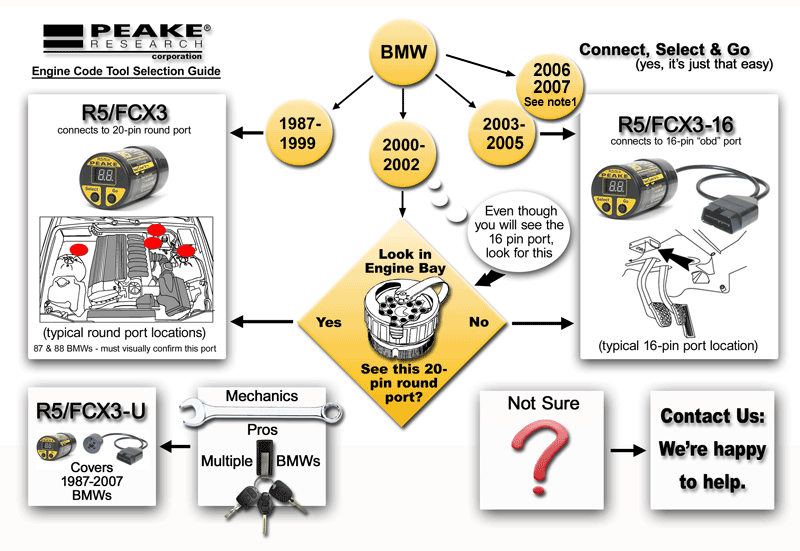

Diagram 1: Selecting the Correct FCX3
Check Your 2006/07 Car:

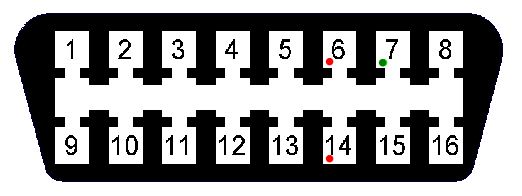

To determine compatibility, use a flashlight to view the OBD connector
under your dash.
- If there is a terminal in position 7, (and positions 6 and 14
are empty), the R5/FCX3-16 or the R5/FCX3-U should work.
- If postion 7 is empty, (with terminals in positions 6 and 14)
the car is incompatible with our tool.
Pin 7 = "ISO". Pins 6 and 14 = "CAN"
We are presently developing a tool capable of CAN, which we will
announce on this site when ready.

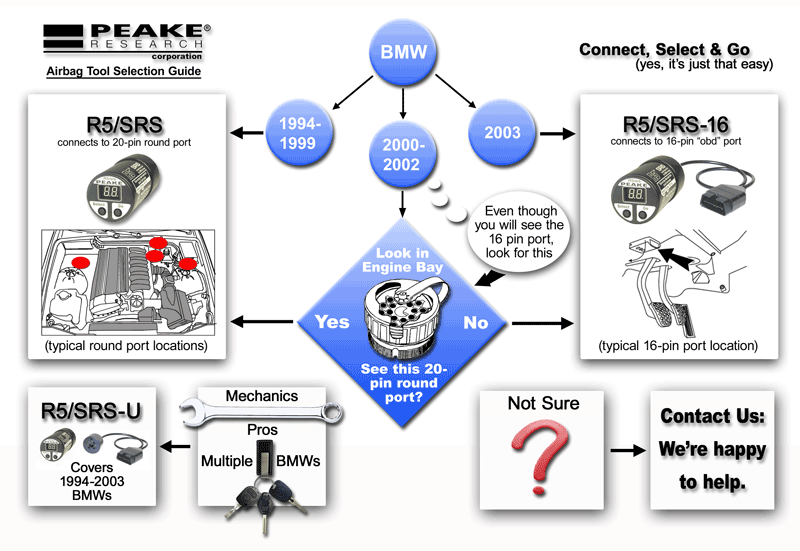

Diagram 2: selecting the correct R5/SRS
